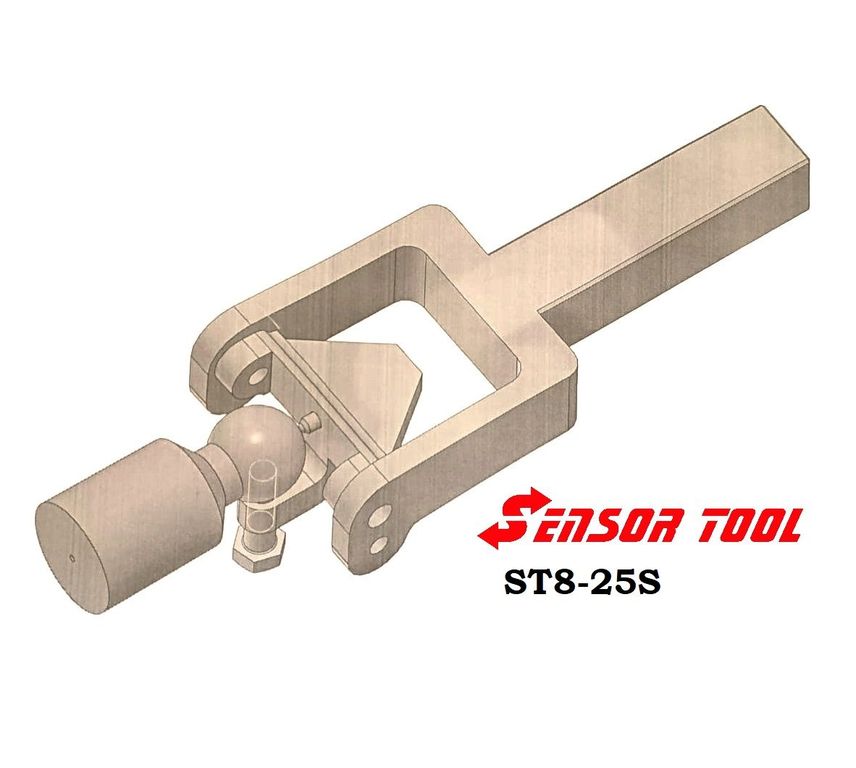

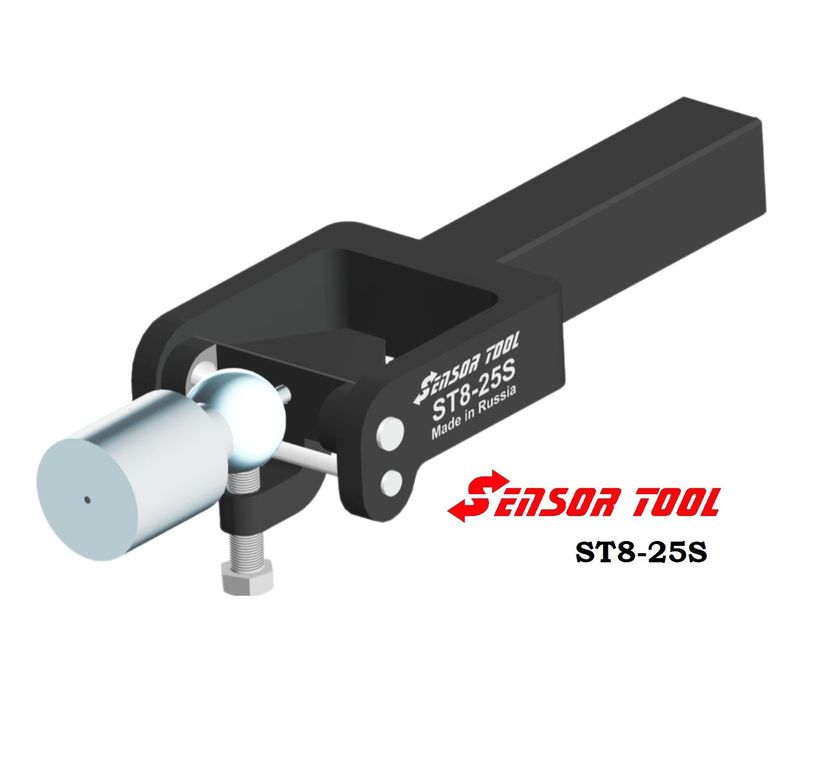

The ST8-25S Diamond Smoothing Machine is used for finishing and hardening of broken spheres.
machining of outer spheres.
The position of the indenter prevents underrun to the wall or bottom of the workpiece and provides finishing treatment
directly to the adjacent wall.
Minimum diameter of the indenter is 16 mm
Mirrored metal surface
Supplied with a square shank 25*25 mm
The tool is used on CNC machines and carousel lathes that can provide finish turning (Ra 1,25 and higher)! Natural diamond (PA) indenters are used Roughness before machining not more than Ra=1,25 microns. Example of parts - hydraulic cylinders, seating surfaces in bearing housings.
Feeding of coolant is external, into the deformation zone (or internal supply of coolant on request).
diamond smoothing (AB)
WARNING!!! The tool is not used for smoothing Titanium, Niobium, Zirconium materials due to the high toughness of the material!!!!
Innovation For Metal Surface Superfinishing

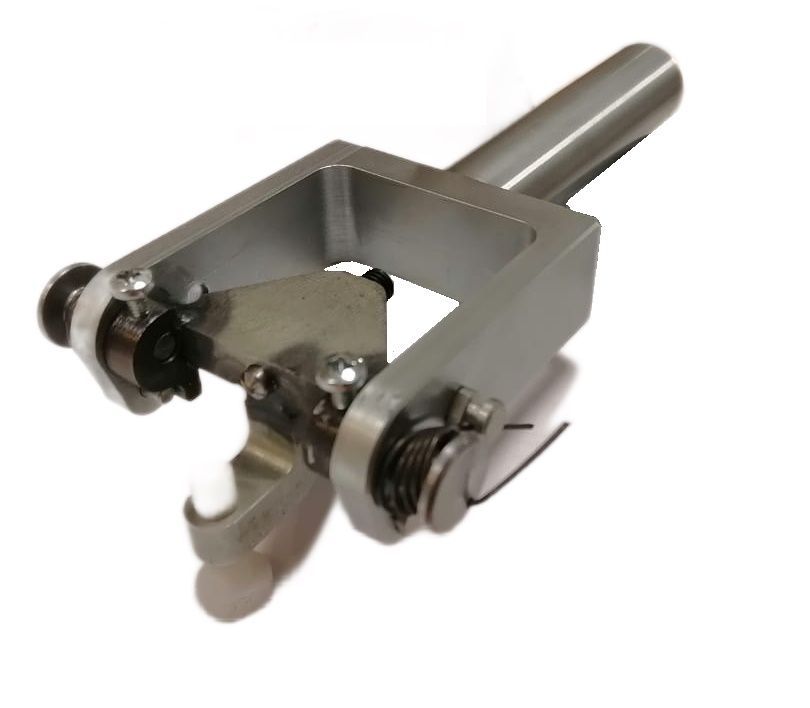

Diamond burnishing tool ST8-25S is used for mirror finishing external spheres.
The positioning of the insert prevents it from underrunning the wall or the bottom of the part and allows finishing directly to the adjacent wall.
CEH-4D1-R25
The minimum diameter of the sphere machined F16 mm. Comes with a square shank 25*25 mm
Tool is used on CNC machining centers or on manual machines that can provide finishing internal turning operations with roughness not less than Ra =1.25 um!
Natural diamond indenters are used. Roughness before processing is not more than Ra = 1.25 microns. An example of parts - hydraulic cylinders, landing surfaces in cases under bearings.
The quality of chrome plating can be improved by diamond smoothing of its surface. This treatment seals the surface layer and eliminates tightness failures in tight interfaces of chrome-plated parts due to the presence of microcracks in chrome.
Tools and accessories for machine tools and machines for tool-free metal working.
Tools and accessories for machine tools and machines for chipless metal working. Metal surface superfinish.
Diamond smoothing allows to increase the surface hardness of dies and punches more than 1500 NV.

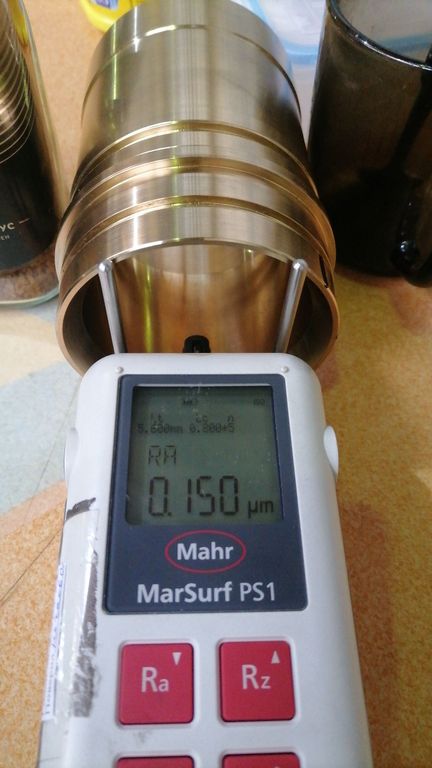

The surface roughness of the tool surface is reduced to Ra 0.1 microns.
The depth of the hardened layer is 200...250 microns.
Optimization of surface microrelief will additionally increase die durability
Diamond smoothing of the surface layer of machine parts.
