SMOOTHING UNIT ST8-10-47-20S FOR MACHINING EXTERNAL SPHERICAL SURFACES
mirror surface

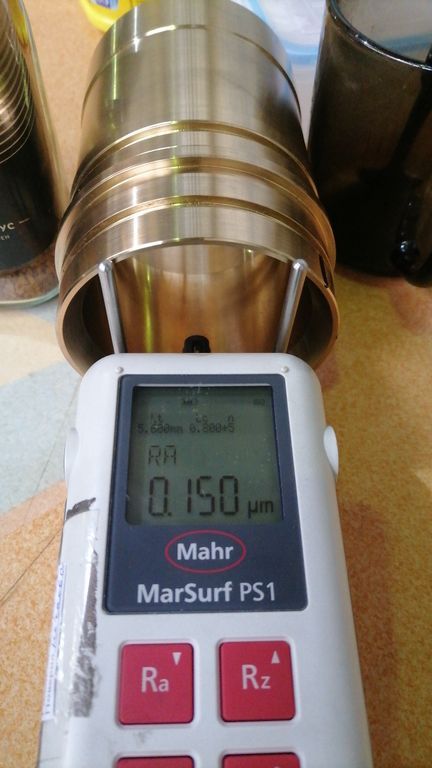

roughness Ra 0.05 or better
mirror surface
roughness Ra 0.05 or better
mirror surface
roughness Ra 0.05 or better

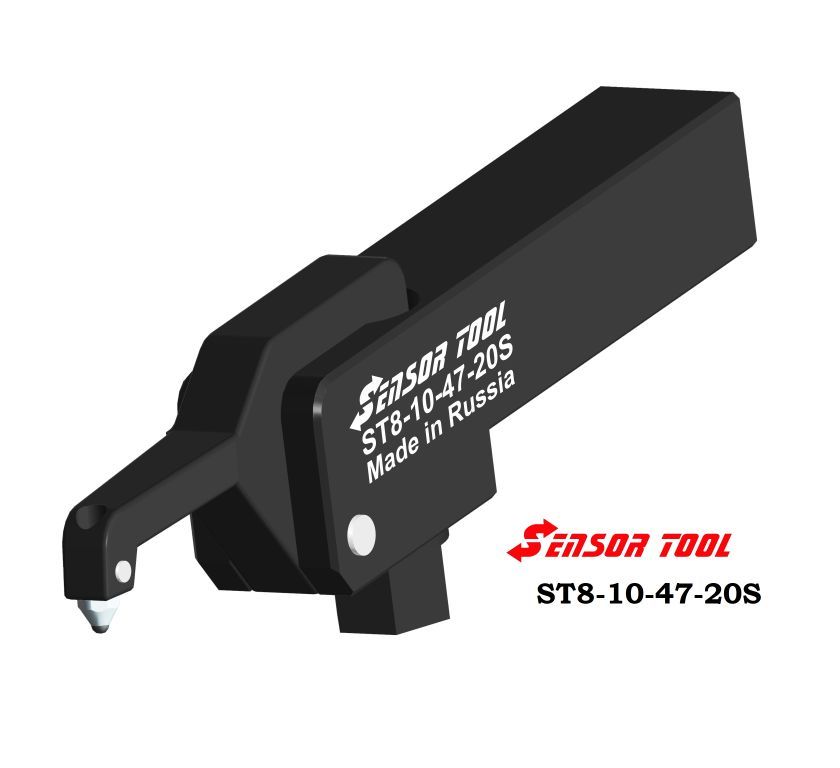

The ST8-10-47-20S Diamond Smoothing Machine is used for finishing and hardening of broken spheres.
machining of outer spheres.

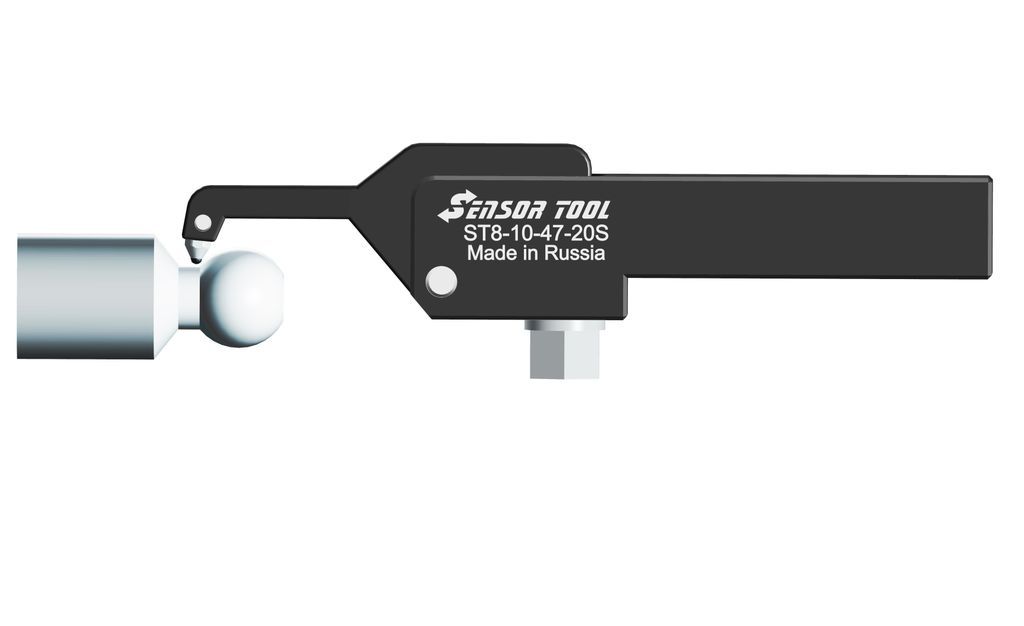

The position of the indenter eliminates the possibility of underrun to the wall or bottom of the workpiece and provides finishing treatment
directly to the adjacent wall.
Minimum diameter of the indenter is 16 mm
Mirrored metal surface
Supplied with a square shank 25*25 mm
The tool is used on CNC machines and carousel lathes that can provide
finish turning (Ra 1,25 and higher)!
Natural diamond (PA) indenters are used
Roughness before machining not more than Ra=1,25 microns.
Example of parts - hydraulic cylinders, seating surfaces in bearing housings.
Feeding of coolant is external, into the deformation zone (or internal supply of coolant on request).
diamond smoothing (AB)
ATTENTION!!! The tool is not used for smoothing materials Titanium, niobium, zirconium due to high material toughness!!!!
The quality of chrome plating can be improved by diamond smoothing of its surface. This treatment seals the surface layer and eliminates tight joints of chrome plated parts due to the presence of microcracks in the chrome.
Tools and accessories for machine tools and machines for tool-free metal working.
Diamond smoothing allows to increase the surface hardness of dies and punches to more than 1500 NV.
The surface roughness of the tool surface is reduced to Ra 0.1 µm.
The depth of the hardened layer is 200...250 microns.
Optimization of surface microrelief will additionally increase die durability
Diamond smoothing of the surface layer of machine parts.
