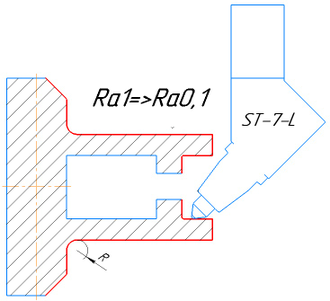

Used for burnishing workpieces with radii, angle, step-shaped surfaces on automatic lathe machines.
Supplied in 2 versions

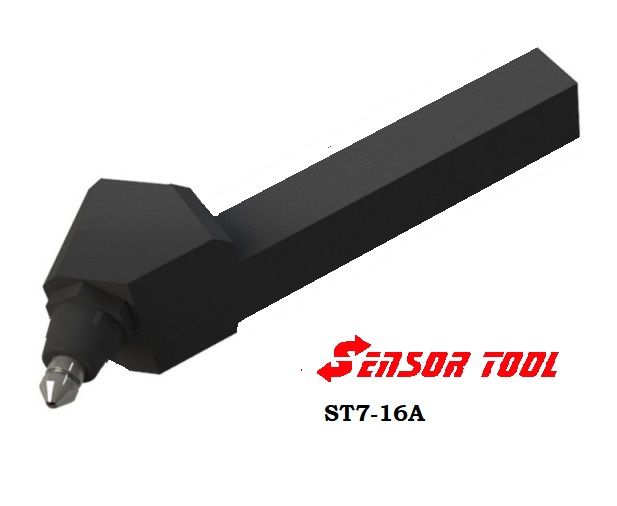

ST7-16AL Left
ST7-16AR Right

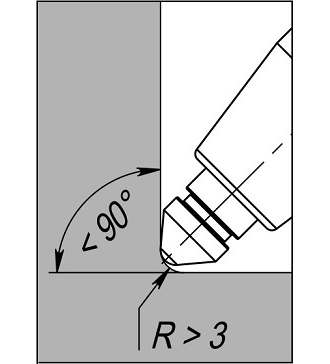

Minimum radius at an angle of 1 mm. Used for finishing surface treatment of parts The shape of the part is a cylinder, bodies of rotation The diameter of the workpiece starting from 4 mm and bigger
Metric square toolholders 12x12, 16x16 (as well as the size of the customer)
Inch toolholders 1/2 inch 5/8 inch

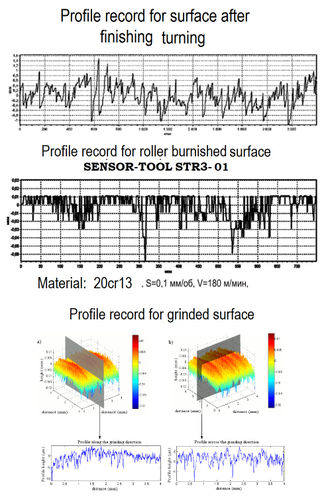

Natural diamond The tool is used for finishing The tool completely replaces the grinding and polishing area. High-precision diamond tools. At finishing and finishing-hardening processing, smoothing of roughness is provided up to Ra = 0.2 ... 0.05 micron;

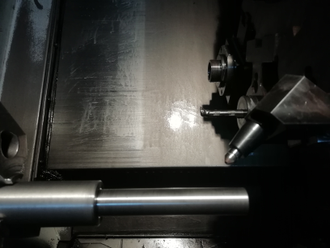

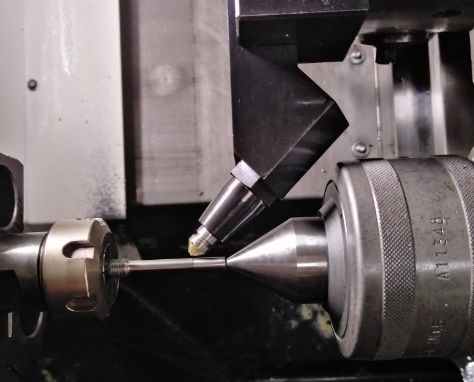

It is used on automatic lathe machines Example of parts - hydraulic cylinder rods, valve spindles, heels of submersible pumps, shafts, sleeves, bearings, bushings, crankshafts, valves.

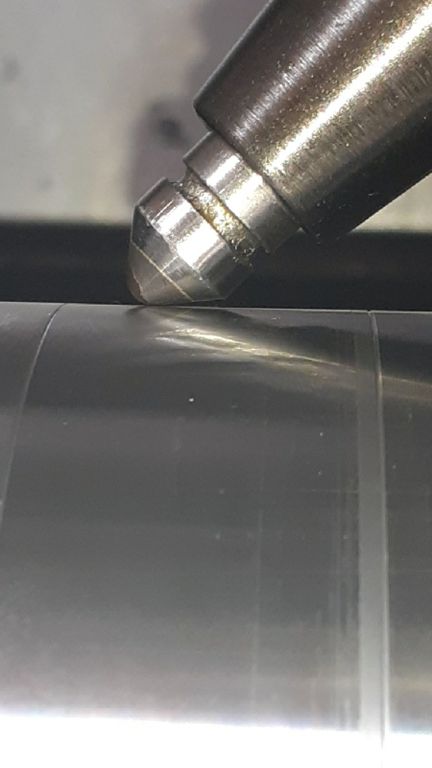

High-precision diamond tools. Metal burnishing.
lower processing costs lower processing costs reduction of processing costs cost reduction for Metalworking cost-cutting tools cost-cutting tool chipless processing Metal processing without chip removal cut back on metalworking costs auxiliary time reduction Reducing production costs metalworking quality improvement stress relief Reducing production costs lower direct costs for cutting tools lower direct costs for grinding and polishing Reduced set-up time Reduced set-up time cold working without chip removal economy of scale operational excellence
The quality of chrome plating can be improved by diamond smoothing its surface. This treatment compacts the surface layer and eliminates the tightness of tight joints of chrome-plated parts due to the presence of microcracks in chrome.
