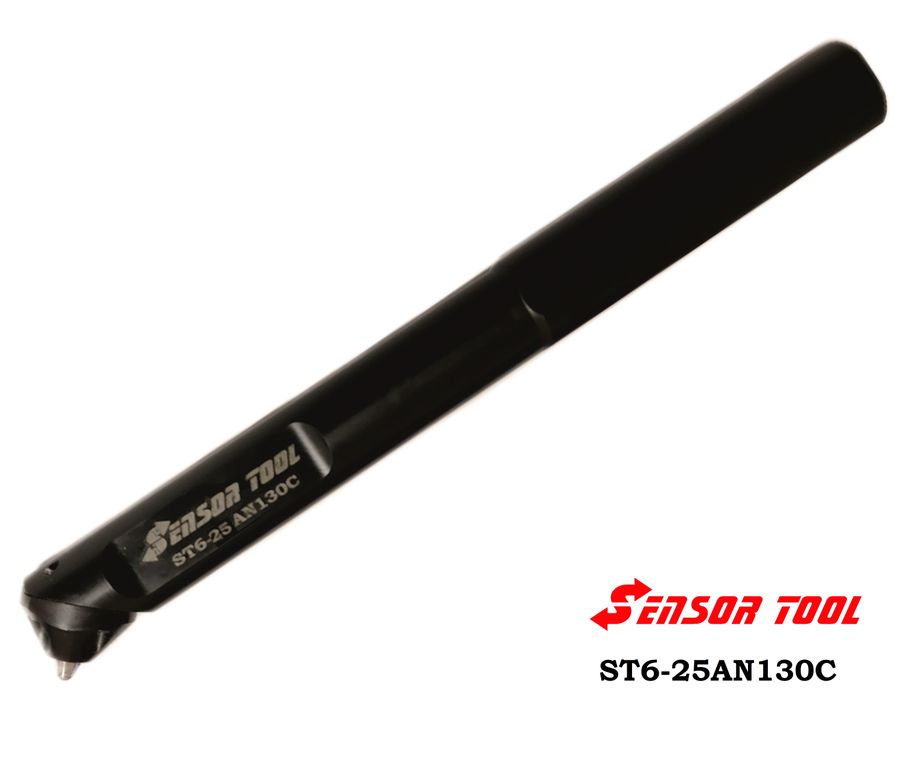

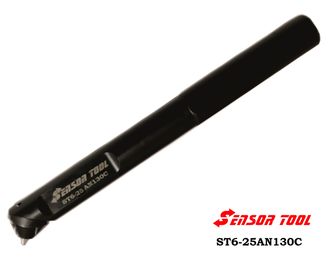

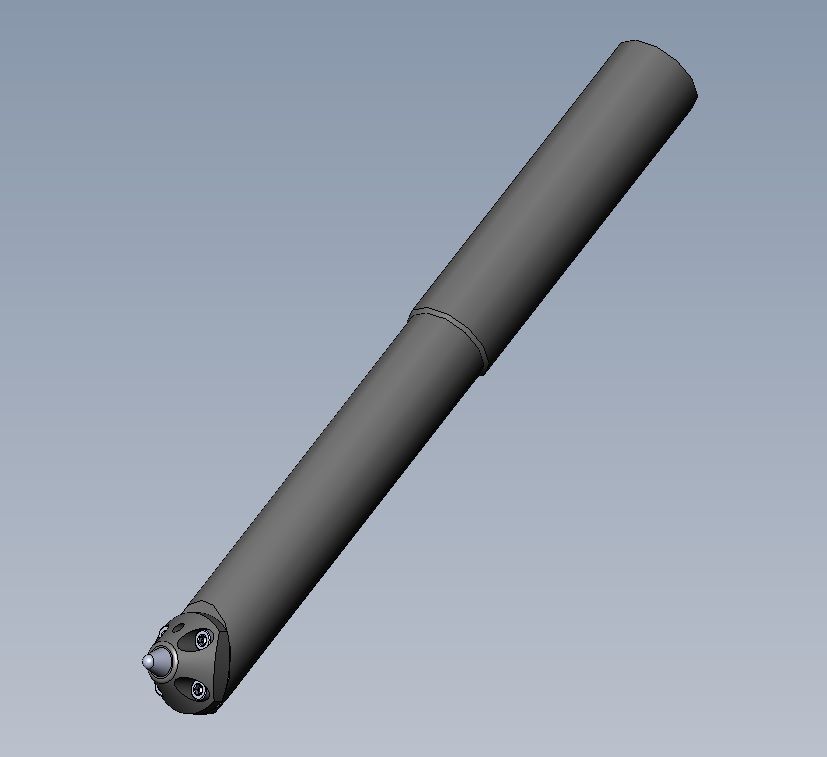

ST6-25 AN130C DIAMOND BURNISHING TOOL FOR BLIND HOLES AND BOTTOMS

Innovation For Metal Surface Superfinishing

Diamond burnishing tool ST6-25 AN130C  is used for  mirror finishing blind holes.

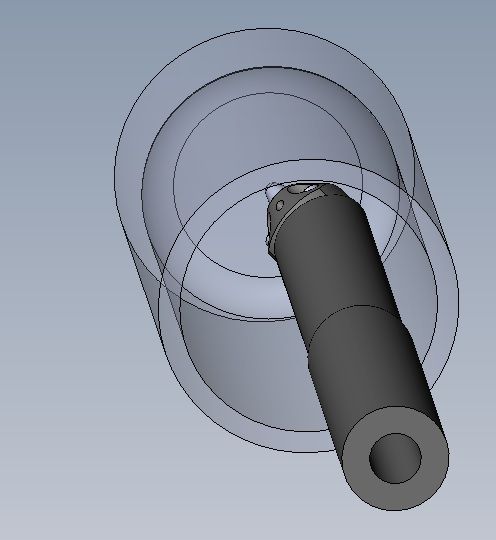

The positioning of the insert prevents it from underrunning the wall or the bottom of the part and allows finishing directly to the adjacent wall.
Maximum hole depth 130 mm.

The minimum diameter of the hole machined 40 mm.
Comes with a round shank diameter Ф 25 mm

Tool is  used  on CNC machining centers or on manual machines that can provide finishing internal turning operations with roughness not less than Ra =1.25 um!

Natural diamond  indenters are used.
Roughness before processing is not more than Ra = 1.25 microns.
An example of parts - hydraulic cylinders, landing surfaces in cases under bearings.
