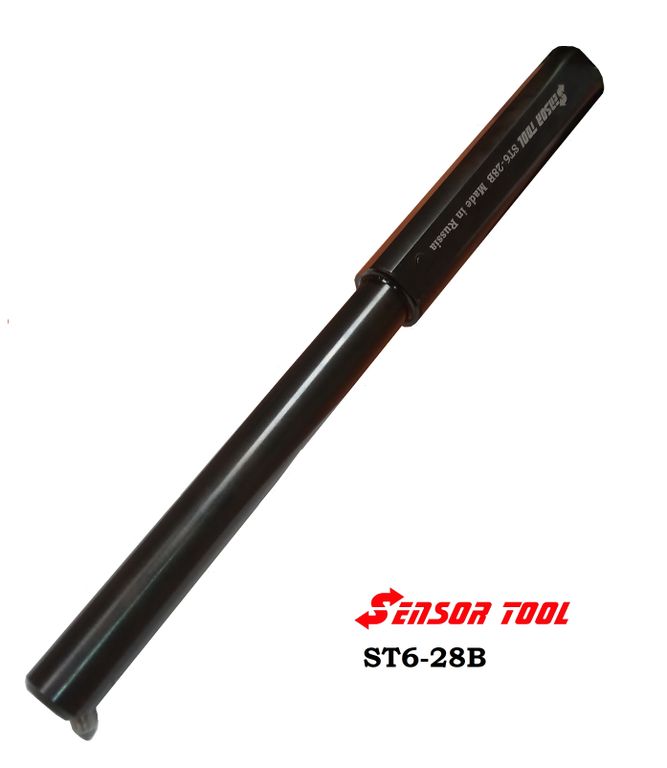

Diamond burnishing tool ST6-28B is used for mirror finishing blind holes.
The positioning of the insert prevents it from underrunning the wall or the bottom of the part and allows finishing directly to the adjacent wall. Maximum hole depth 180 mm.
The minimum diameter of the hole machined 28 mm. Comes with a round shank diameter Ф 32

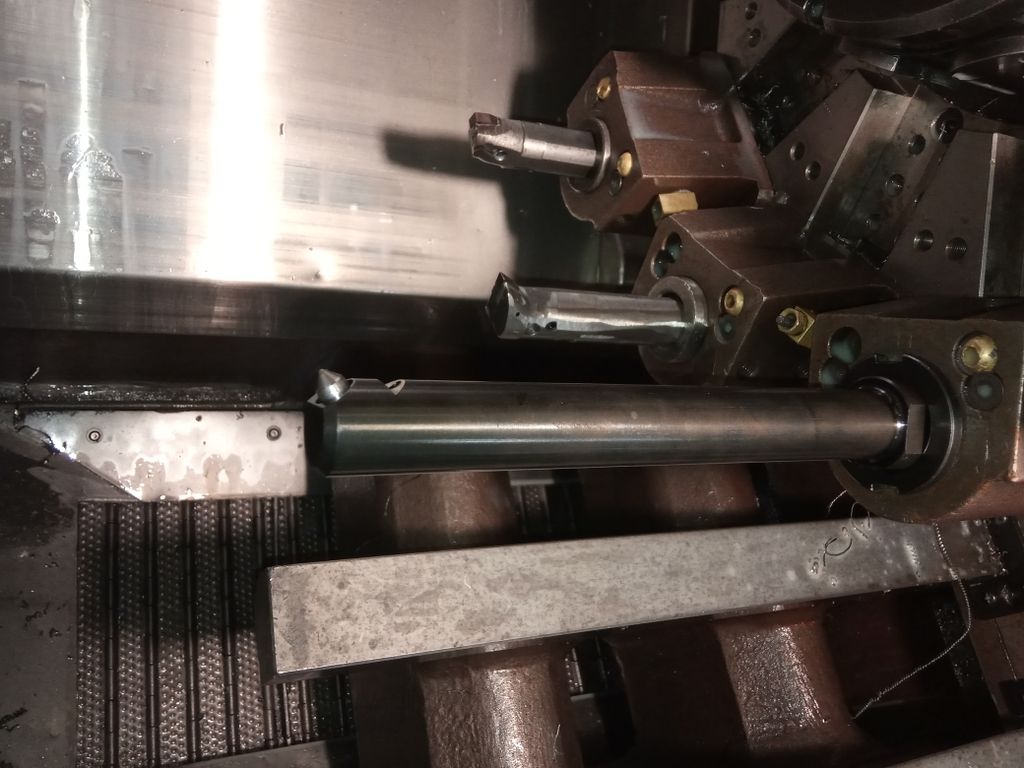

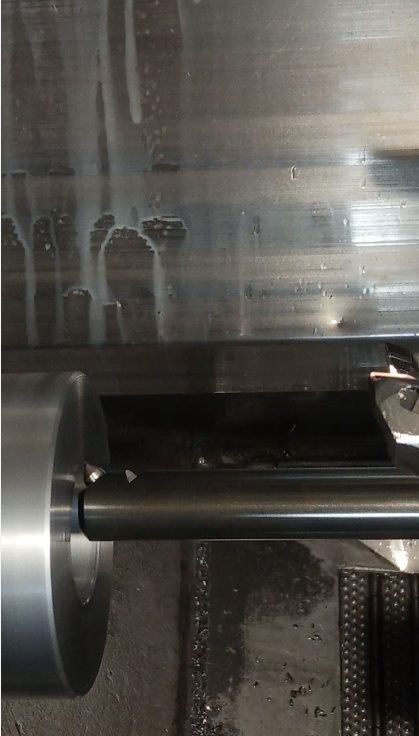

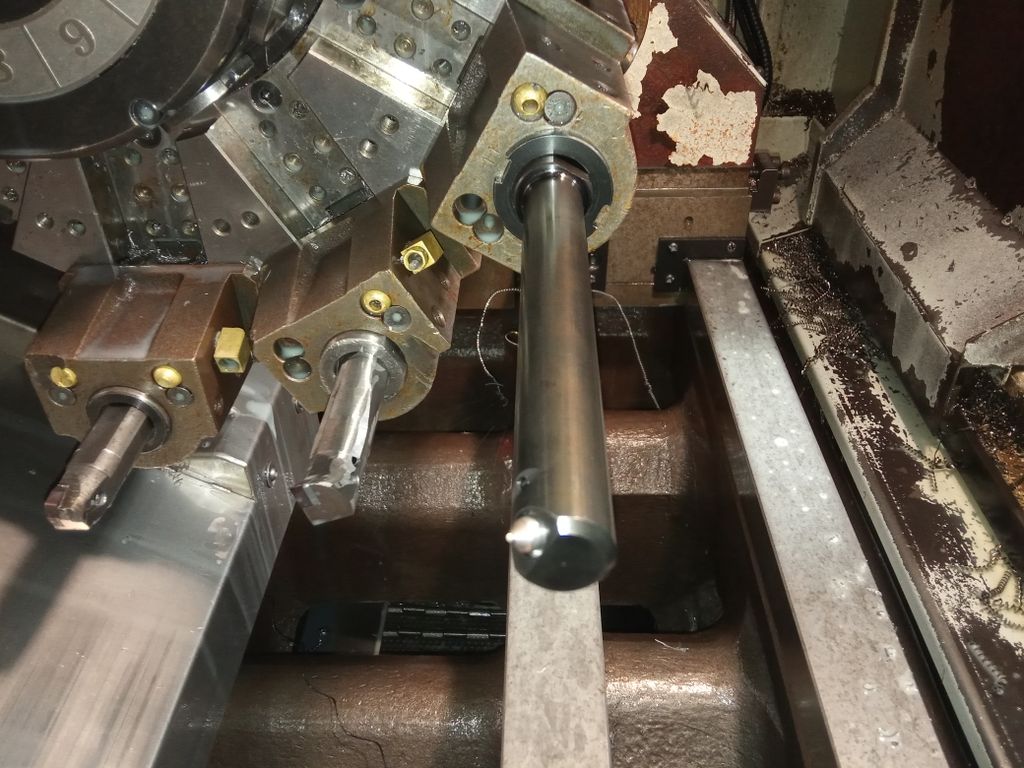

Tool is used in lathe machines Natural diamond indenters are used. It is recommended to use on machines that can provide finishing internal turning operations! Roughness before processing is not more than Ra = 1.25 microns. An example of parts - hydraulic cylinders, landing surfaces in cases under bearings.
