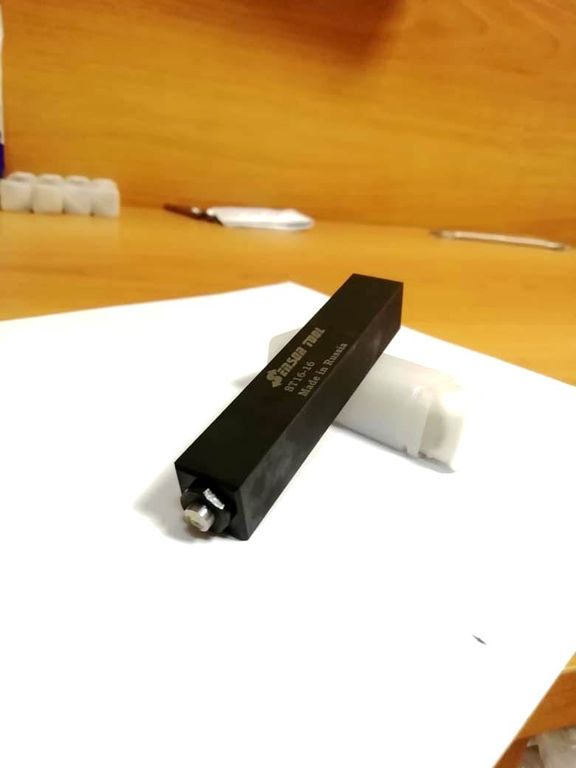

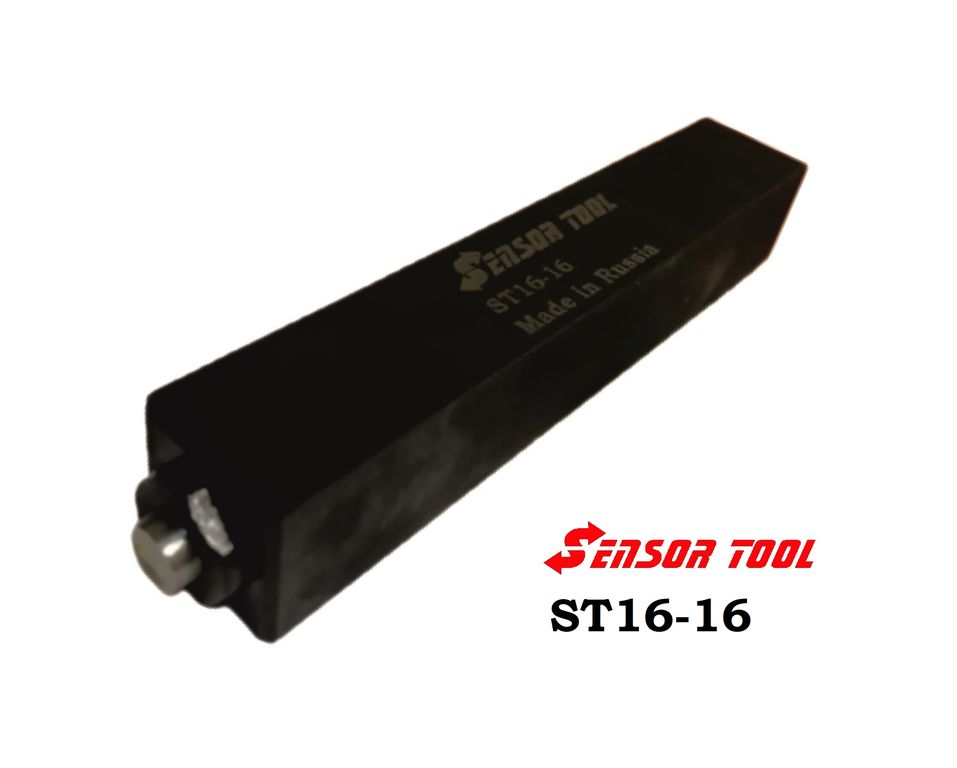

ST-16 Diamond burnishing tool for automatic lathes and swiss-type machines

Diamond Burnishing tool ST-16 is used for superfinishing the surface of steels, stainless steels, cast iron, alloy parts.

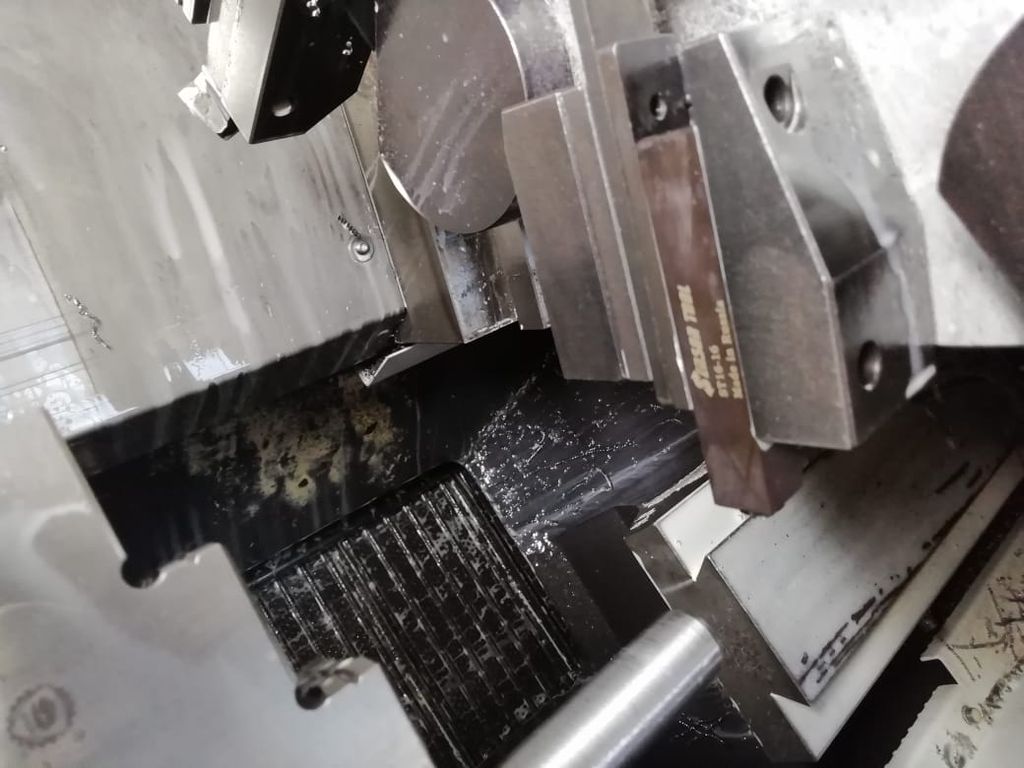

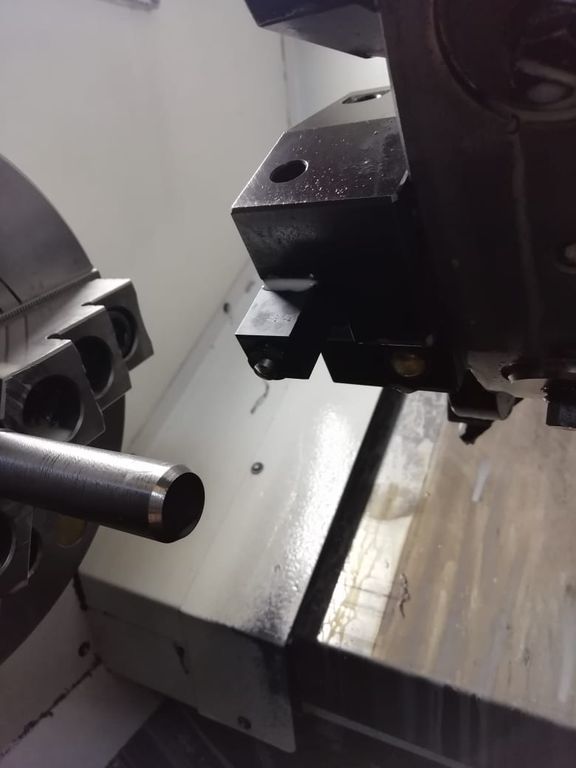

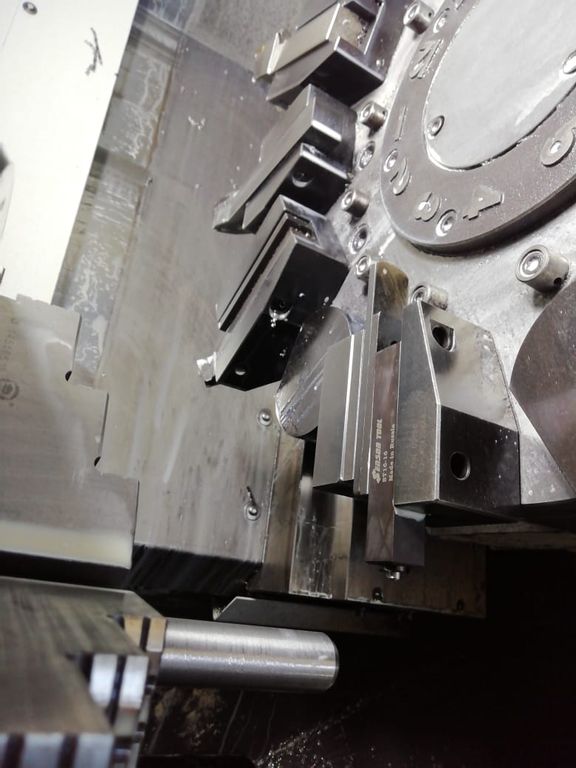

Tool can be used on small machining centers, table lathes and milling machines, swiss-type machines.

Supplied with fixed burnishing force, for processing one type parts.

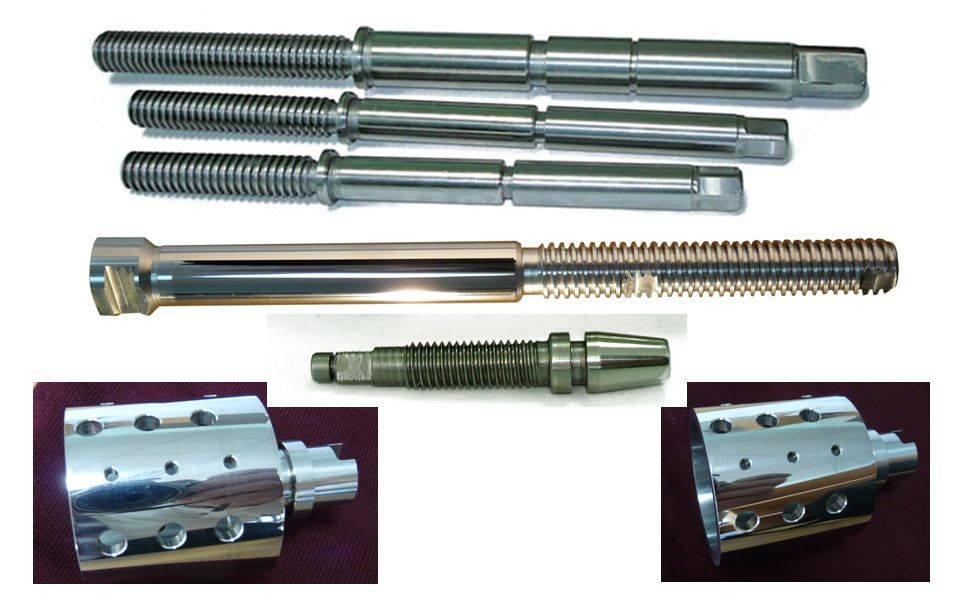

Workpart shapes - cylinder, body of rotation, spherical part, tapers, cones.

Workpiece diameter starting from diameter Ф 5 mm

Metric Toolholders 12x12 ,  16x16 mm

Inch toolholders      1/2"  ,    5/8"

Indenters (diamond inserts) made of natural diamond

The tool completely replaces the grinding and polishing machines.

Our tool kills costs for extra personnel, grinding machines, consumables, re-installation and re-basing of parts .

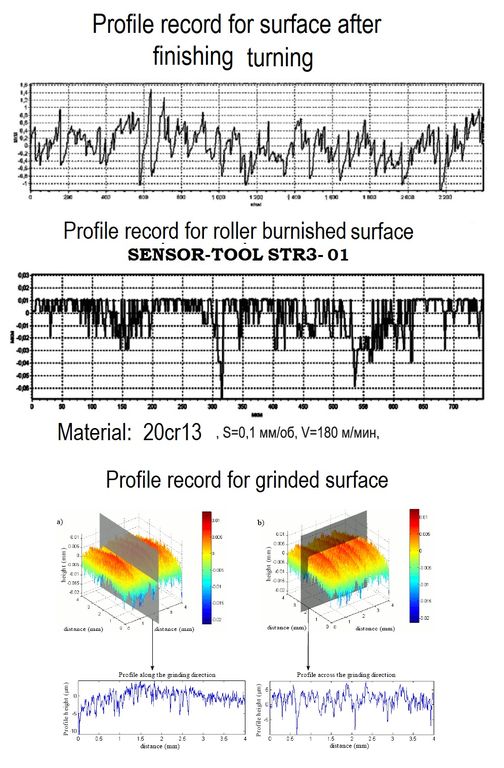

During processing, the roughness is smoothened to the level Ra = 0.2 ..... 0.05 ? um in one or two passes

Can be used on CNC machines/universal lathes.

To obtain a stable micro profile of a surface , we recommend to use ST-1 on machines that can provide finishing turning!

Materials: any structural steel max HRC 64

Roughness before processing: no more than Ra = 1.25 ?m

High-precision diamond tools. Metal burnishing.

These diamond tools are designed to increase surface hardness through the cold-working process and compressive forces, and they increase metal’s resistance to fatigue and failure at stress points while producing a dense and uniform surface. They are available in inch and metric slim-line, square, offset, on-center, stick and boring bar styles.

With cycle times that are measured in seconds rather than minutes, diamond burnishing allows companies to achieve a consistent mirror-like finish and replace hand polishing. Economical, long-lasting and replaceable wear parts are said to reduce the total cost throughout the life of the tool. Wear parts are easy to replace, with common tool
