Diamond burnishing tool for machining plane surfaces.
The burnishing tool is used for superfinishing plane metal surfaces on conventional and CNC milling machines.
ST-11 tools can be used in both large and small areas and are ideal for small batch production.
Diamond burnishing tool of milling type can perform quality finishing of continuous surfaces, the tool does not process non-continuous surfaces.
The tools are supplied preloaded. The spring pressure can be adjusted to provide the same pressure on the workpiece surface, ensuring repeatability from part to part.
Flatness and absence of height differences are ensured by multiple intersection of indentor trajectories.
Ø20mm cylindrical shank for fixing in the chuck.
ST11-8 - burnished path width 8mm
A plentiful supply of coolant is required.
External coolant supply.
Make burnishing in a single setup with the finishing milling.
Used indentors from natural technical diamond (PA).

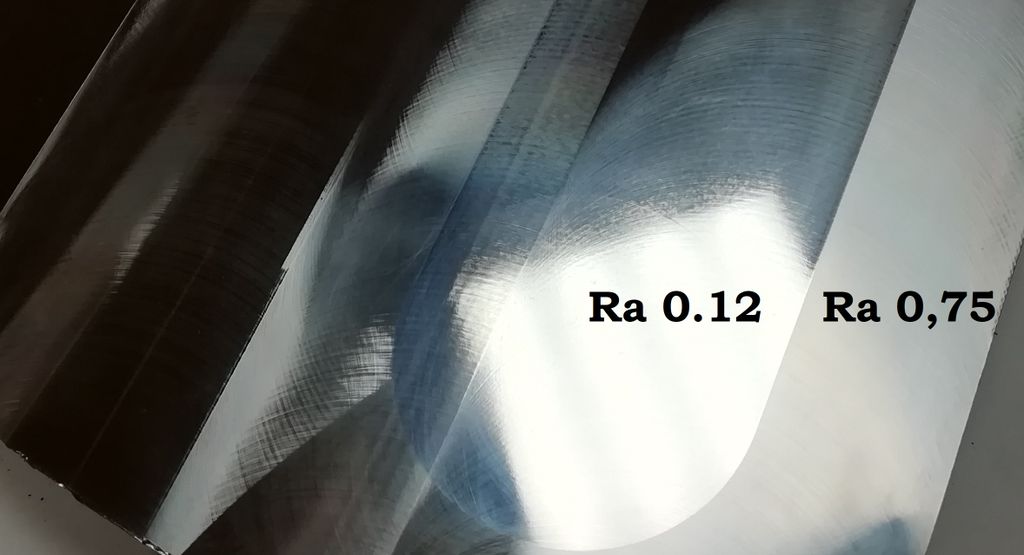

Recommended initial roughness after milling is Rа 1,0...0,8
Extra diamond inserts are easy to replace and are available from stock.
The high quality replaceable diamond insert is ground and polished for a superior finishing and long tool life.
Example of workpiece to be burnished - die mould surface, slide gate, tool body, accessory surface, machine bed guides, slide gate wedge.
Diamant-Polierer für die Bearbeitung von Ebenen.
Der Polierer wird durch die Veredelung von flachen Metalloberflächen auf CNC-Fräsmaschinen angewendet.
Zylinderförmiger Schaft F20, zum in der Patrone zu befestigen
Eine ausreichende kühlschmierstoffzufuhr ist erforderlich. Glätten in einer Einheit mit endfräsen. Verwendet indentoren in natürlichen technischen Diamanten(PA)
Empfohlene anfängliche Rauheit RA0,6...0,4
Diamond Burnish Face Mill Tools
ST11-8 - polierte Band breite 8mm
Das Glatten wird in einer Aufspannung mit einem Fertigfräsen durchgeführt. Es werden Eindringkörper mit natürlichen technischen Diamanten verwendet. Die empfohlene Ausgangsrauhigkeit nach dem Fräsen beträgt Ra 1,0...0,8. Ersatzdiamanteinsätze sind einfach zu ersetzen und ab Lager lieferbar. Die hochwertigen Ersatzdiamanteinsätze sind geschliffen und poliert, um eine hohe Oberflächengüte und eine lange Lebensdauer des Werkzeugs zu gewährleisten.
Beispiel für ein zu polierendes Werkstück - Oberfläche der Matrize, Schieber, Werkzeugkörper, Oberfläche des Zubehörs, Führungen des Maschinenbetts, Schieberkeil.
