ST7-25 burnishing tool for radius, angle and step-shaped surfaces

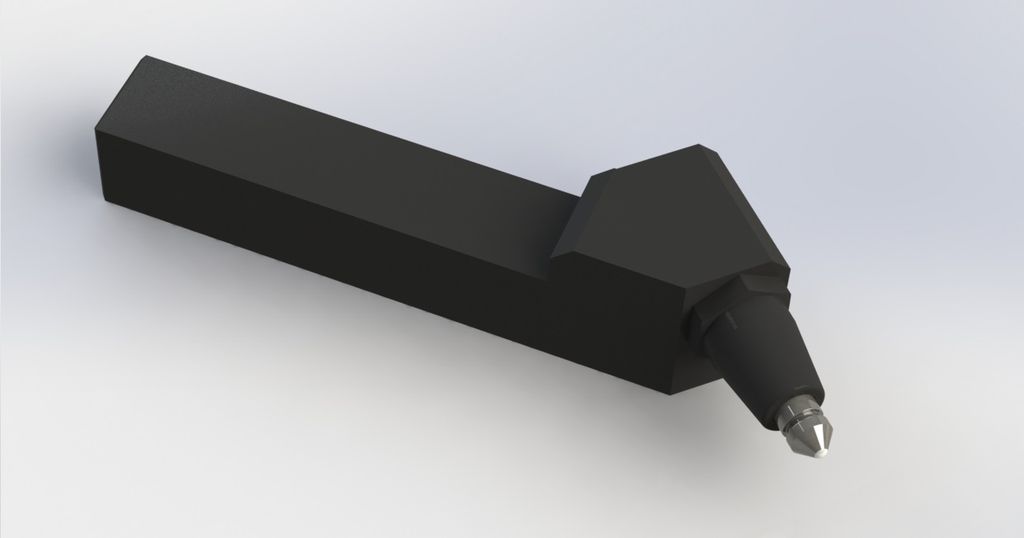

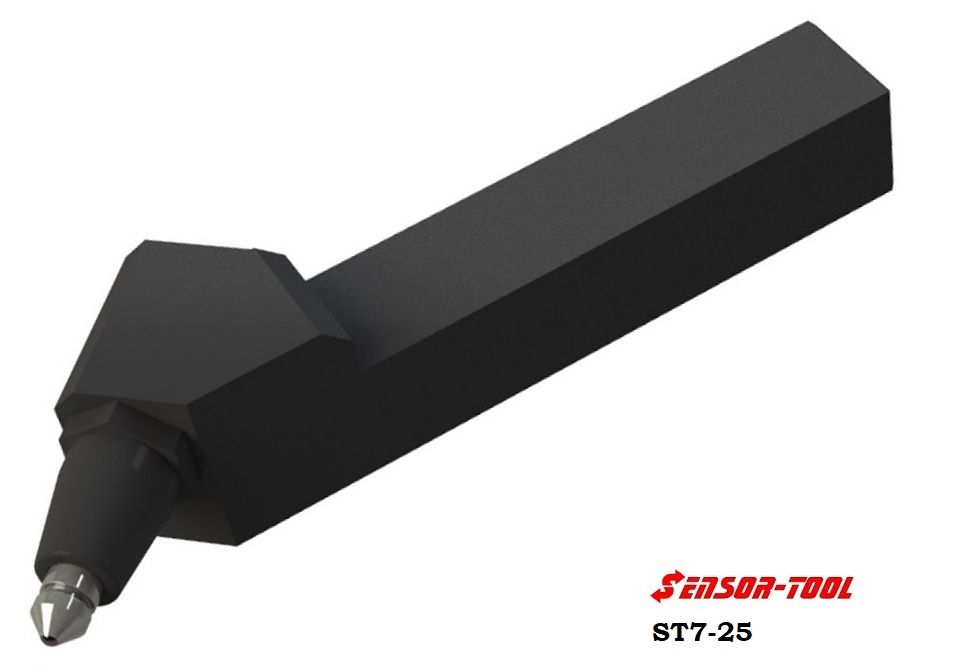

Sensor-Tool ST7-25 diamond burnishing tools

Sensor-Tool ST7-25 diamond burnishing tools
Описание
Описание

Sensor-Tool ST7-25 diamond burnishing tools

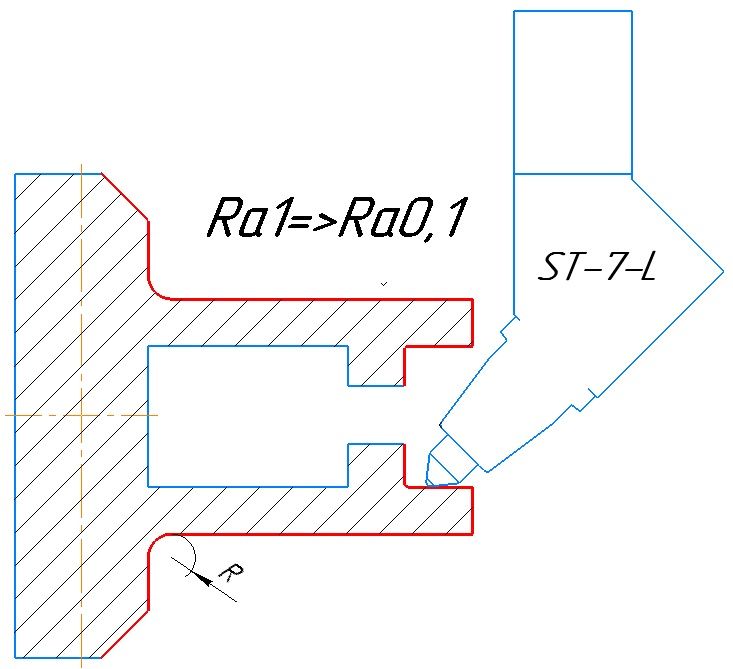

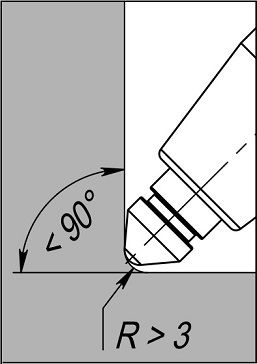

USED FOR BURNISHING RADII AND ANGLE, STEP-SHAPED SHAFTS.


Supplied in 2 versions


ST7-25R   for processing parts  in direction from rear center towards the chuck

ST7-25L   for processing parts  in direction from the chuck  towards rear center


Used for finishing surface treatment of parts
The shape of the part is a cylinder, bodies of rotation
The diameter of the workpiece starting from 8 mm and higher

Metric square toolholders  16x16, 20x20, 25x25 (as well as the size of the customer)

Inch toolholders   0.625"x0.625"   0.750"x0,750"   1.00"x1.00"


Natural diamond (ND)
The tool is used for finishing
The tool completely replaces the grinding and polishing area. High-precision diamond tools.

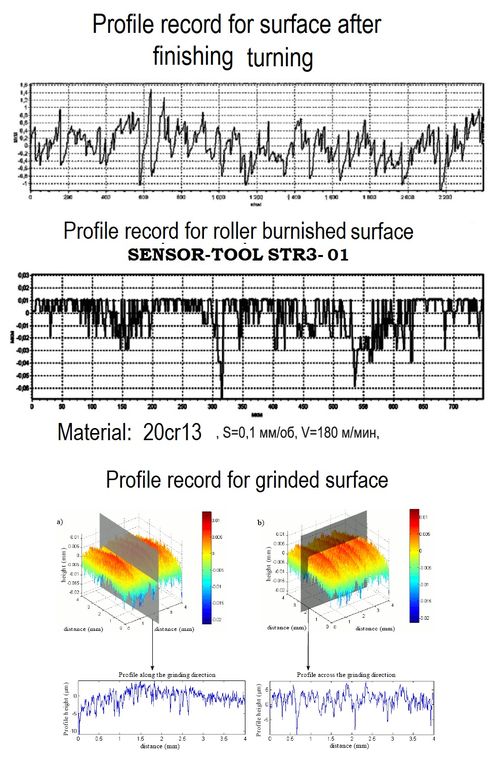

Surface roughness is provided up to Ra = 0.2 ... 0.05 micron;

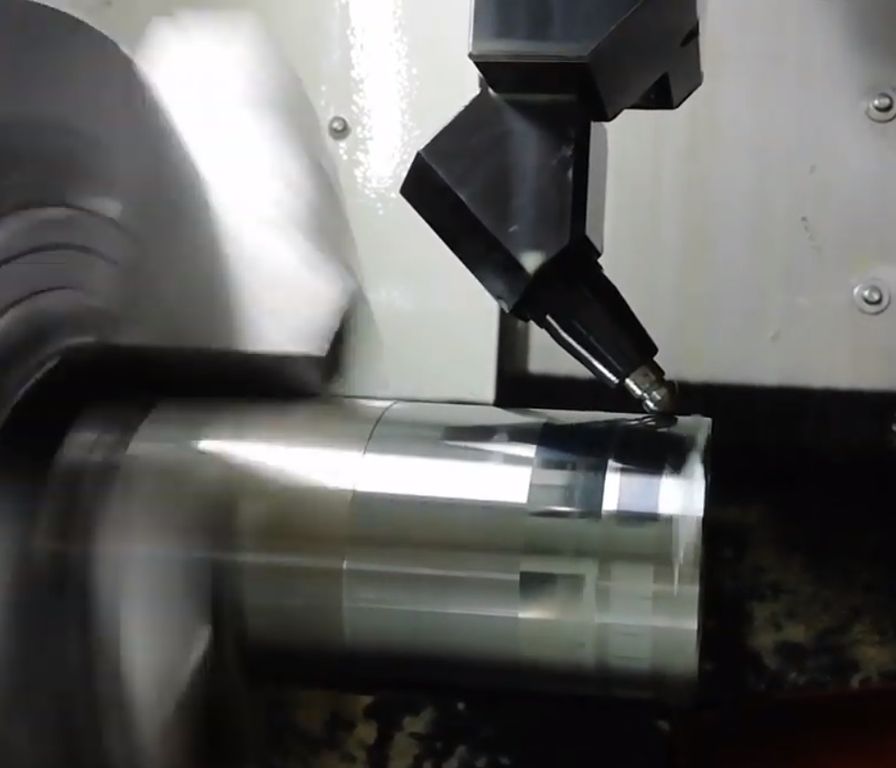

It is used on CNC machines and universal machines capable of finishing turning.
Example of parts - hydraulic cylinder rods, valve spindles, heels of submersible pumps, shafts, sleeves, bearings, bushings, crankshafts, valves.

High-precision diamond tools. Metal burnishing.


lower processing costs
lower processing costs
reduction of processing costs
cost reduction for Metalworking
cost-cutting tools
cost-cutting tool
chipless processing
Metal processing without chip removal
cut back on metalworking costs
auxiliary time reduction
Reducing production costs
metalworking quality improvement
stress relief
Reducing production costs
lower direct costs for cutting tools
lower direct costs for grinding and polishing
Reduced set-up time
Reduced set-up time
cold working without chip removal
economy of scale
operational excellence



The quality of chrome plating can be improved by diamond smoothing its surface. This treatment compacts the surface layer and eliminates the tightness of tight joints of chrome-plated parts due to the presence of microcracks in chrome.
