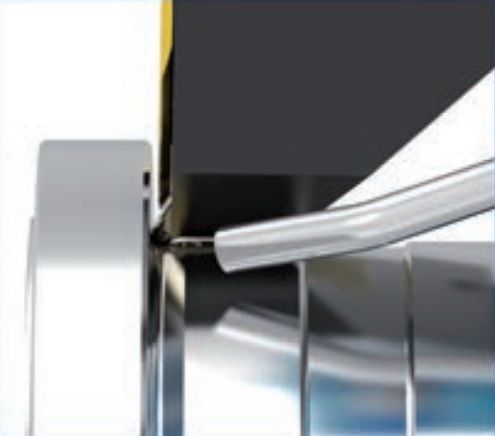

For machining fillets on turned parts, such as shafts, screws, tension rods, torsion rods. Deep rolling in a plunge-in process. One floating roller. Burnishing force monitoring adjusted for the radius of the fillet using a dial gauge.
Can be used with conventional or CNC-lathes. Complete processing in one setting. Allows either right or left hand operation. Rotation in either direction.

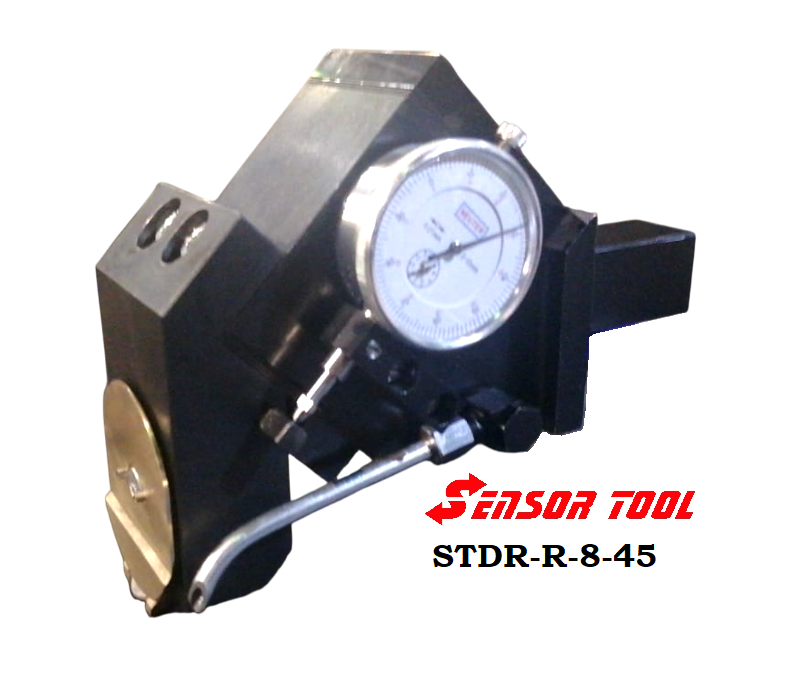

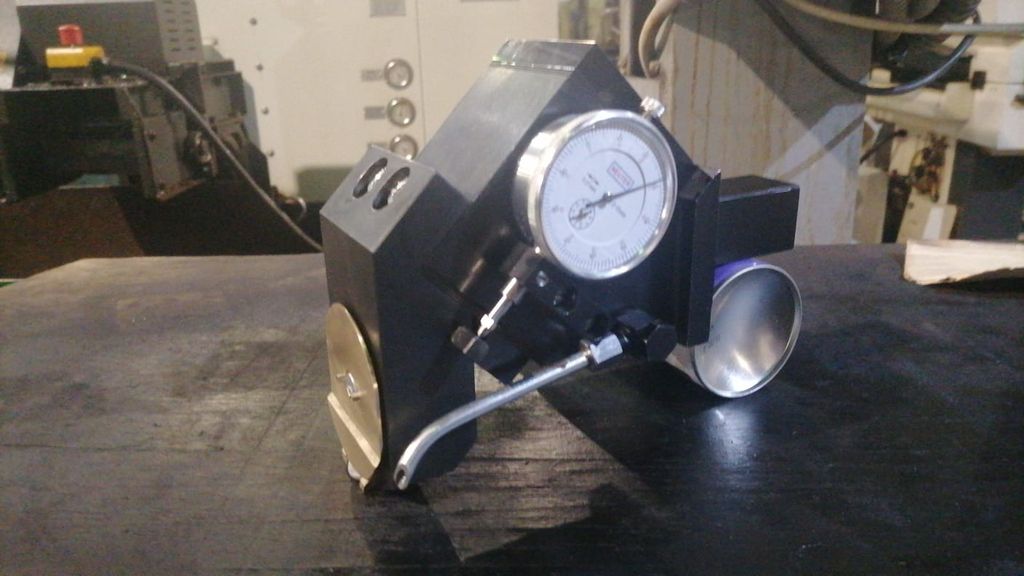

The tool body has a tool shank and a spring assembly with no play, low friction and progressive action. The normal version is equipped with a dial gauge that indirectly indicates the spring force.

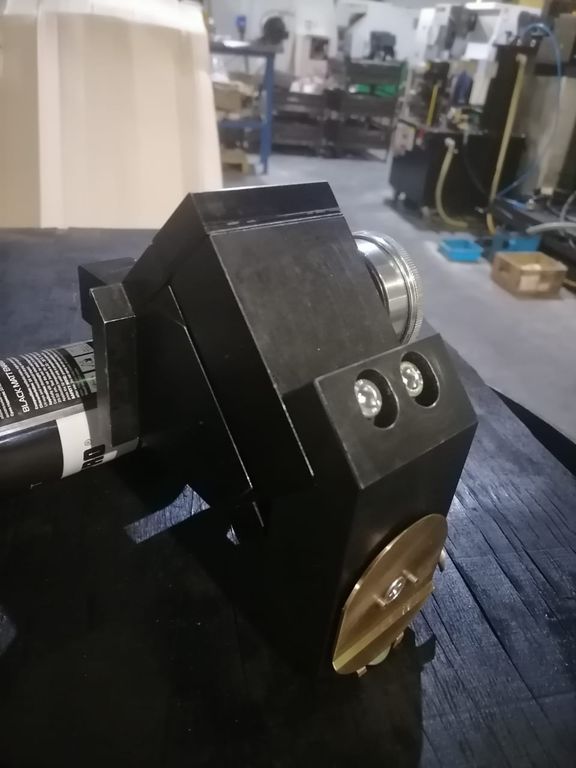

Special versions can include an inductive measuring system for external display of the spring force. Burnishing head with roller is affixed to the springloaded section of the tool body.
The springs allow the roller retainer to move elastically when affected by radial or axial burnishing forces acting upon the tool retainer. A cage holds the roller, which is supported by a support body with large-scale needle bearings.
Max. circumferential speed: 20 m/min.
Max. burnishing force: 20 kN.
