Modular system for diamond burnishing hydraulic cylinder tubes
Burnishing head can be mounted on any machine boring bar.
The burnishing head with 3 diamond insert placed like triangle ensures that tool is accurately based relative to the part.
Workpiece length : unlimited due to high stability
The runout of the part or machine is compensated by a damping system.

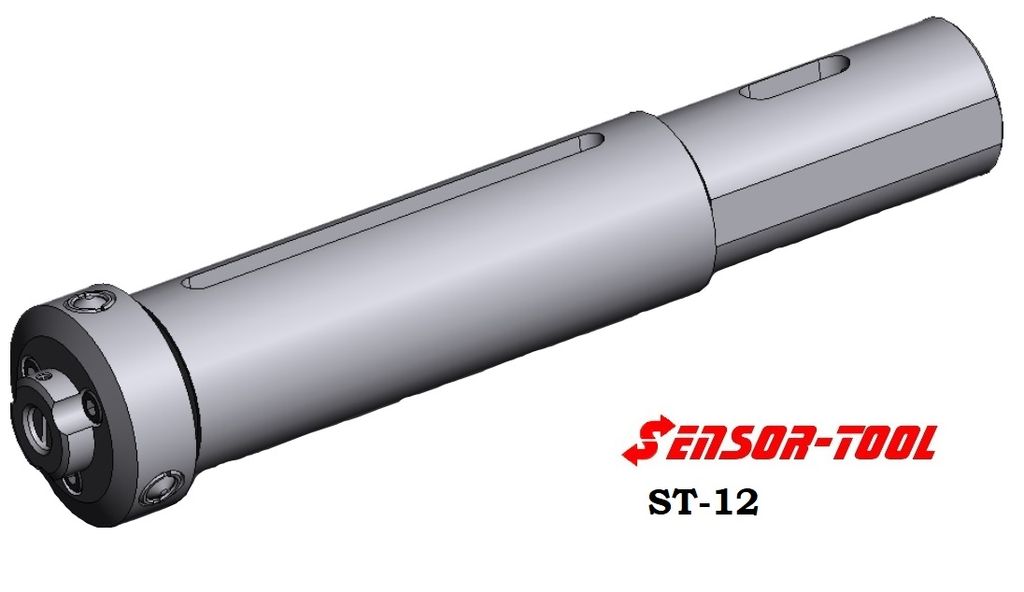

Tool size : Ф 50 - ST12-50, Ф 60 - ST12-60
Smallest tube size available for ST-12 : Ф50 мм
Replaceable diamond inserts made from Natural Diamond and available on demand.
Type of connection - at customer request
Standart shank type of toolhlder: round shank Ф40
